PALit™ — Stack Smarter

The modular, mobile palletizer that fits your shop floor.

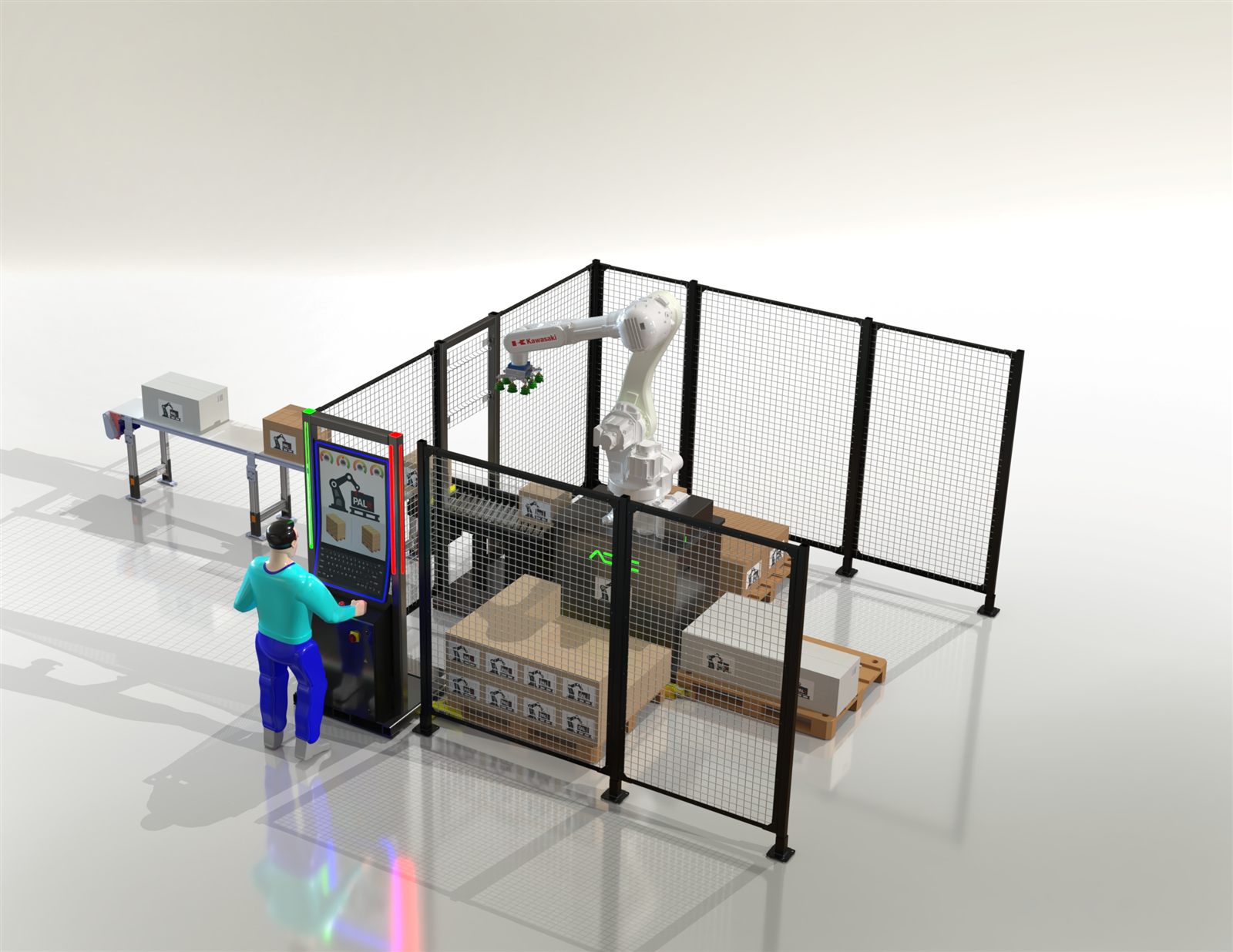

PALit is Automated Design Corp's portable robotic palletizing system that sets up fast and scales even faster. Roll it into place with a standard pallet jack, connect utilities, and teach patterns on the XL kiosk — no programming degree required.

Robotic palletizing that fits your plant or warehouse floor.
Easily deploy PALit where you need it — then move it as your needs change. Roll PALit into place with a pallet jack, connect utilities, and teach patterns with the XL kiosk. Adjustable pallet locators and flexible infeed options let you align with existing equipment.

Configure one, two, or three pallet positions — the third can serve as a slip-sheet staging station between layers. Choose the Kawasaki RS030N, RS050N, or RS080N to match your box size and weight, with throughput up to 12 cartons per minute¹. An XL kiosk display and intuitive software make new palletizing or depalletizing routines simple.

One infeed. Multiple sized cartons. Multiple pallets. Auto assigned.
PALit auto-routes each carton to the correct pallet and pattern in 2- or 3-pallet cells, so a single line can feed mixed-SKU production without operator intervention.

Key benefits:

Portable & re-deployable: Integrated base moves with a standard pallet jack — reallocate by shift, SKU, or cell.
Scales with your needs: Configure 1, 2, or 3 pallets; use the third position to stage slip sheets between layers (when configured).
Right-sized performance: Select from Kawasaki RS030N / RS050N / RS080N to match payload and box size.
High throughput: Up to 12 cartons per minute¹ with optimized patterns and tooling.
Operator-friendly: XL kiosk display, large icons, and an intuitive UI for fast routine creation — no programming degree required.
Safety your way: Choose a fence + light curtains package, or go fenceless with SICK area scanners (additional safety audit required).
Fit to your line: Adjustable, modular pallet locators; flexible infeed options — inline, left, right, dual/multi conveyor — or tie into your existing conveyor.
End-of-arm flexibility: Standard EOATs for common cartons; custom tools available for unique applications.

Software & kiosk:

Extra-large display with high-visibility status indicators
Icon-driven interface for quick routine creation (palletizing & depalletizing)
Pattern setup wizard with layer mirroring, offsets, and slip-sheet steps
Production views: rate, completed layers, pallet status, and fault guidance

¹ Throughput depends on pattern, travel distances, EOAT, carton characteristics, and safety zoning.
