Products & Services
The complete ADC catalog — automation, test systems, and sensing technology
Automated Design Corporation builds complete automation systems, precision test equipment, and high-speed sensing instruments for manufacturers worldwide. Browse every system below — grouped by application — or use the pendant menu to jump to a specific product.
End of Line Automation
Sorting Diverter Conveyor
Automated high-speed sorting and diverting system with programmable lane routing and integrated barcode scanning.
Learn more →UL 508A Industrial Control Panels
Custom-designed control panels built to UL 508A standards. PLC, HMI, servo drives, and safety systems engineered for your application.
Learn more →Custom Fabrication Services
In-house mechanical design, machining, welding, and assembly. From prototype to production, our shop delivers precision-built automation components.
Learn more →Material Testing
GEN 6 Compression System
The latest generation of our standard load frame. Flexible enough for any industry, commonly used for compression testing. Programmable test sequences and four-second cycle times.
Learn more →
Impact Test System
ASTM F1976 and F1614 material testing. High-energy impact with programmable drop heights, instrumented tup, and real-time force-displacement capture.
Learn more →
Durometer Operating Stand
Motorized hardness testing stand. Eliminates operator variability with programmable descent rate and dwell time.
Learn more →Golf R&D / Q.C.
Ball COR & Durability
The work-horse of golf equipment testing. Tests durability and COR of golf balls and cores for development and quality assurance, with optional statistical tracking and auto-eject.
Learn more →
Club Durability System
Durability testing, performance testing, shaft testing, face-mapping — the Club Durability does it all. Pneumatic braking controls recoil without introducing shaft stress.
Learn more →
Club Head COR System
The most accurate way to test the coefficient of restitution of a club head. Golf balls are fired at a set speed against an accurately positioned club head with pre- and post-impact velocity measurement.
Learn more →Combination Club Tester
Combined club testing capabilities in one integrated system — durability, performance, and shaft analysis.
Learn more →

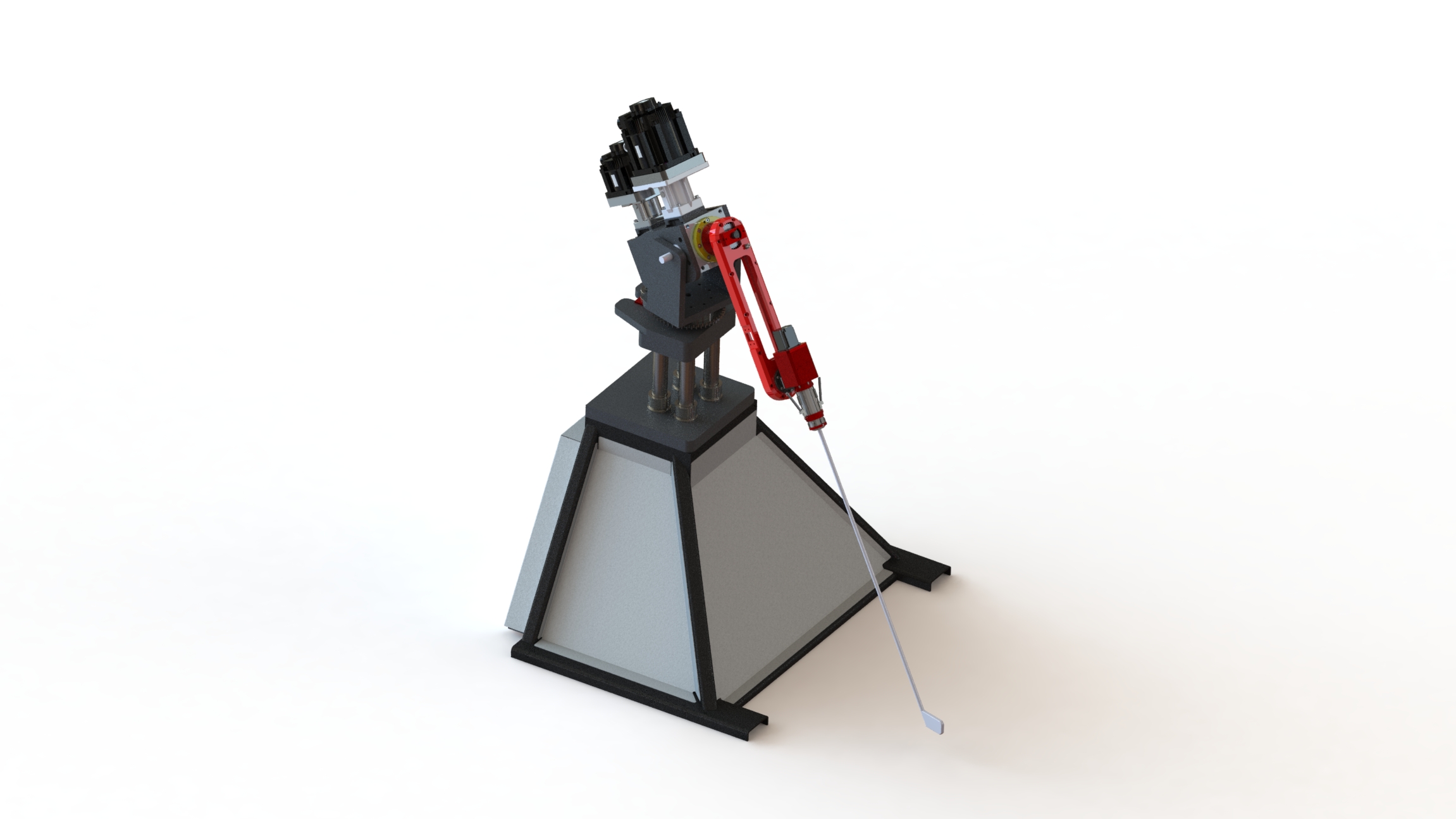

ADC SwingFore
The ultimate golf swing robot. Animates any swing up to 140 MPH with full servo control, keyframe-based programming, and 1 kHz scoped feedback.
Learn more →

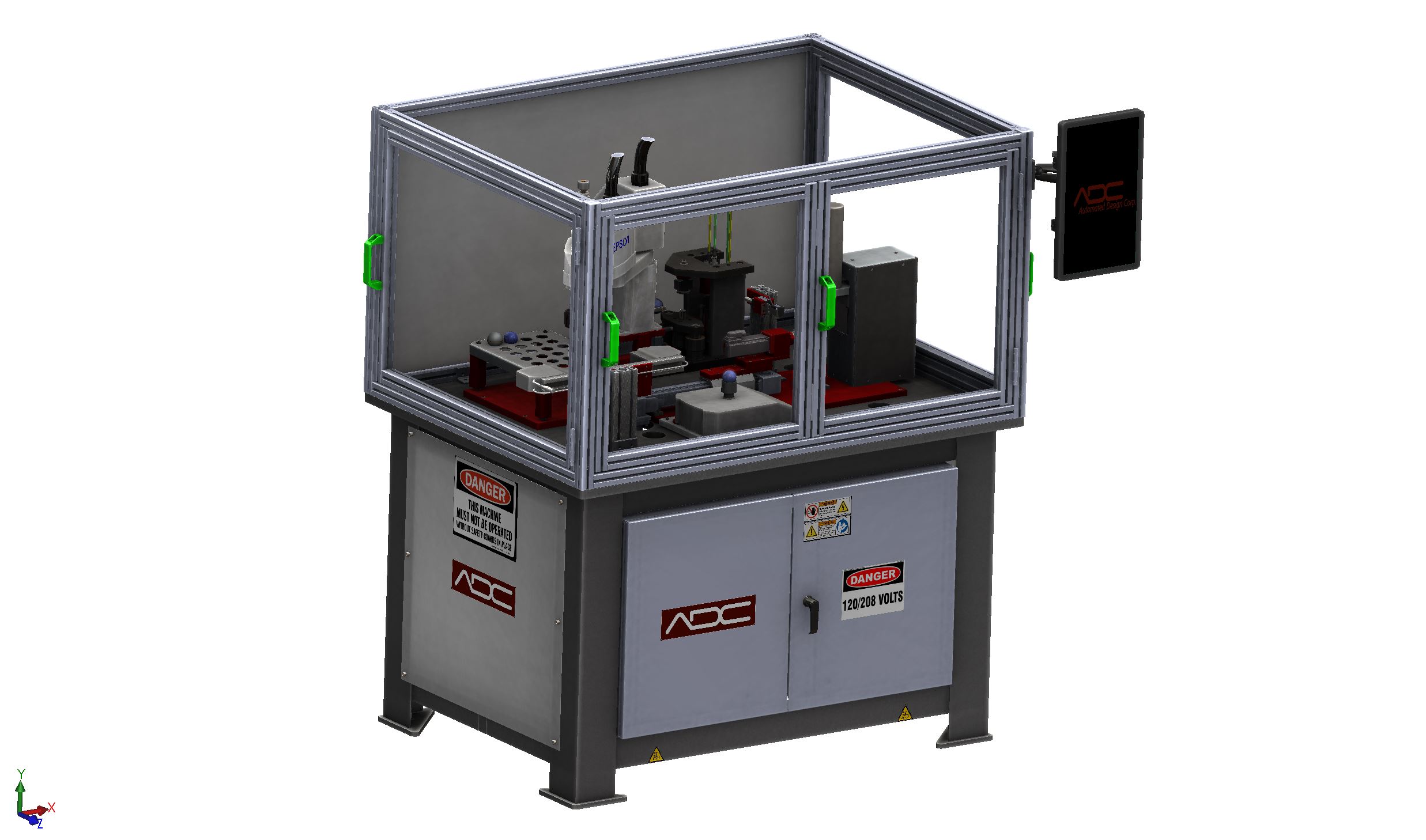

ABMS — Automatic Ball Measurement
Integrates a SCARA-style robot to move balls from station to station. Each test can be custom-written for different routines and testing styles.
Learn more →
ABTS — Aerodynamic Ball Testing
Accurately applies speed and spin rates to any golf ball for development and testing of dimple patterns and aerodynamic performance.
Learn more →

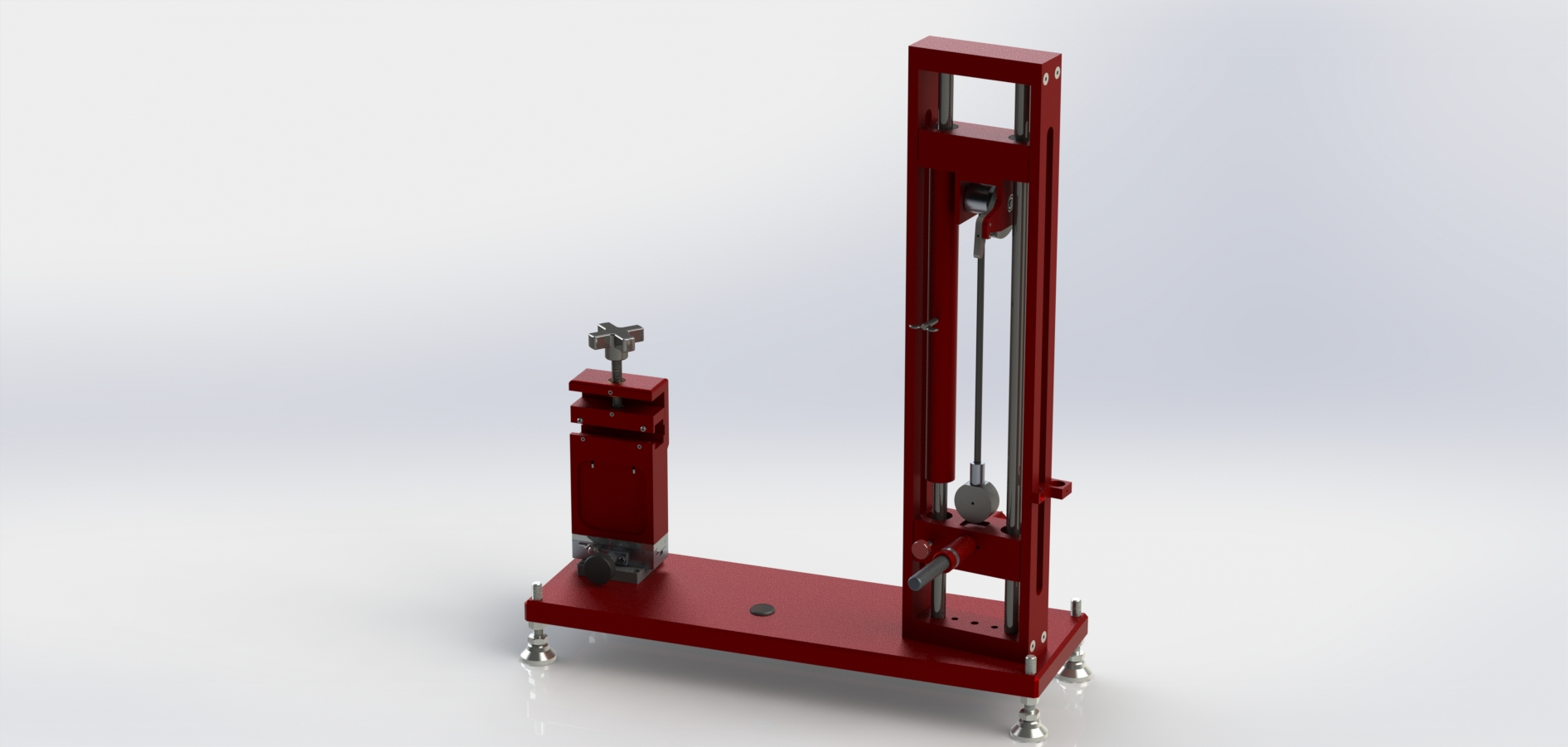

Pendulum Tester
A golf clubhead is impacted by a small steel pendulum. The characteristic time is directly related to the flexibility of the clubhead face.
Learn more →
Ball Cannons
Standard and premium ball cannons for production-rate ball testing. Excellent speed and position repeatability for demanding test protocols.
Learn more →
Tee Loader
Five-axis robot with self-contained two-axis motorized positioning. Automates the ball loading process for higher-throughput measurements.
Learn more →
Whacker
Single-plane, single-axis robotic arm that impacts a golf ball or core. Automatically recovers the ball and cycles it through the system.
Learn more →Baseball & Softball R&D / Q.C.
Bat Durability System
Durability testing for baseball and softball bats meeting ASTM and governing body requirements.
Learn more →
Bat Performance System
Precision bat performance testing built to ASTM standards. Measures BBS, MOI, and barrel compression.
Learn more →
Bat Roller
Conditions bats for performance testing. Programmable rolling profiles ensure consistent preparation.
Learn more →Sabot Cannon
Precision ASTM-standard ball launcher for bat performance testing. Fires baseballs and softballs at controlled velocities.
Learn more →
Rebound Chamber
Standardized sensing chamber for BBCOR and DS testing. Uses paired iBeam sensors and VelociGraph for velocity and COR calculations.
Learn more →Pickleball R&D / Q.C.
Pickle Press Load Frame
Paddle and ball compression testing. Servo-driven load frame configured specifically for pickleball equipment qualification.
Learn more →
Paddle MOI
Measures the moment of inertia of pickleball paddles for certification and development testing.
Learn more →
Pickle Performance System
Advanced performance and certification testing for pickleball equipment. Complete test station with integrated data acquisition.
Learn more →Sensing Technology
iBeam Screen Sensors
Infrared optical screen sensors with less than 2 microsecond response time. Stackable, field-configurable, and designed for indoor and outdoor test ranges.
Learn more →
VelociGraph (VG03)
Multi-channel velocity and timing data acquisition system. Accepts 5-24 VDC trigger pulses, calculates speed automatically, and exports data via USB or Ethernet.
Learn more →
Indoor Test Range (ITR)
Complete enclosed test range with integrated iBeam sensors, projectile trap, and VelociGraph data system. Turnkey solution for laboratory ballistic testing.
Learn more →Rebound Chamber
Instrumented chamber for measuring inbound and rebound velocity of projectiles. Uses paired iBeam sensors and VelociGraph for COR and trajectory calculations.
Learn more →Need to find the right system for your application?
Our engineering team is ready to discuss your requirements.
